RDS5160 60 180 270 1/5 (180) Servo kg RC Digital Servo High Torque Mental Gear Degree with U-Shaped Mount Disc for RC

RDS5160 Servo 60 kg RC Digital Servo High Torque Mental Gear 180 270 Degree with U-Shaped Mount Disc for 1/5 RC Car Robotics DIY Projects (180)

RDS5160 60 180 270 1/5 (180) Servo kg RC Digital Servo High Torque Mental Gear Degree with U-Shaped Mount Disc for RC

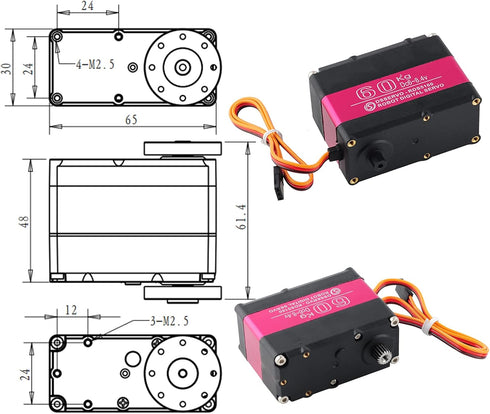

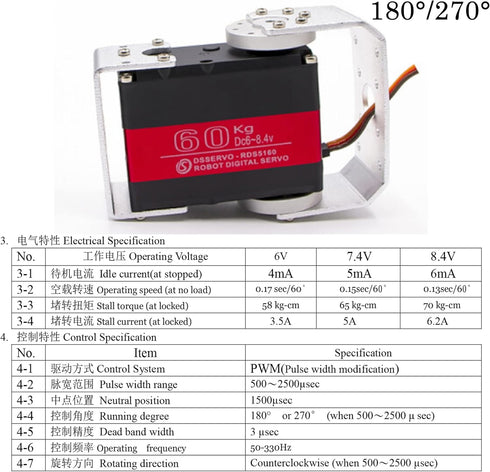

Applicable environmental conditions Storage temperature range: -30C ~ 80C. Operating temperature range: -15C ~ 70C. Operating voltage range: 6-8.4 V. Mechanical specification: Size: 65 x 30 x 48 mm. Weight: 163 g. Transmission ratio: 279. Bearing: double bearing Connecting wire: 300 5 mm. Motor: 3-Ploe(s). Electrical specification: No-load current (in standstill): 4 mA at (6 V) 5 mA at (7.4 V) 6 mA at (8.4 V). Operating speed (without load): 0.17 sec/60 at (6 V) 0.15 sec/60 at (7.4 V) 0.13 sec/60 at (8.4 V). Stop torque (when blocked): 58 kg. cm. at (6 V) 65 kg. cm. at (7.4 V) 70 kg. cm. at (8.4 V). Current consumption when stopped (when blocked): 3.5 A/6 V, 5 A/7.4 V, 6.2 mA/8.4 V. Control specification: Control: PWM (pulse width modification). Pulse width range: 500 ~ 2500 sec. Neutral position: 1500 sec. Running level: 180 or 270 (at 500~2500 sec). Dead zone width: 3sec. Operating frequency: 50-330 Hz. Rotation direction: counter-clockwise (at 500 ~ 2500 sec). Features: - Durable metal gearbox. - Double ball bearing. - Programmable digital amplifier with Mosft Drive. - Axial mounting hole on the bottom. - Original factory product. - Less noise. - Contains: Long bracket aluminium & short bracket aluminium & circle holder 18T & circle holder orientation angle: maximum 180 or 270 deg. - Mechanical angle: 360 degrees (plug/output wheel/radio control system compatible with Futaba JR Hitec).

Brand: Wishiot

torque, servo, mount disc, torque mental, games, projects 180, 180, disc car, controlled vehicles, gear 180, rds5160, shaped mount Toys & Games Remote & App Controlled Vehicles & Parts Remote & App Controlled Vehicle Parts Servos & Parts Servos

Key Features

• How to connect the cable: red is positive, black/brown is negative, white/yellow is signal
• The operating voltage is DC6-8.4V, the best operating voltage is 7.4V. Torque: 58kg.cm.(6v) 65kg.cm.(7.4v) 70kg.cm.(8.4v)
• High quality: metal gear and housing made of aluminium alloy, waterproof IP67 supports wet environment, but cannot be used directly under water
• Control angle 180/270 degrees, 60 kg large torque, supports your DIY project, widely used in robots, robot arms, Baja cars and remote controlled toys

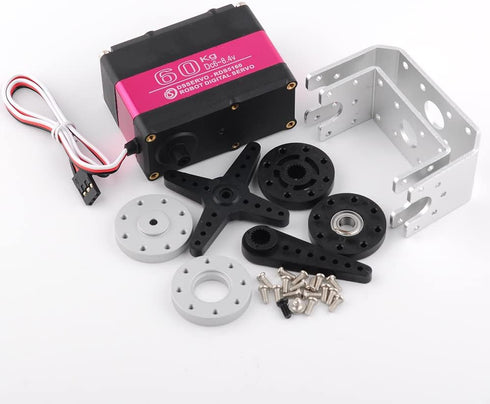

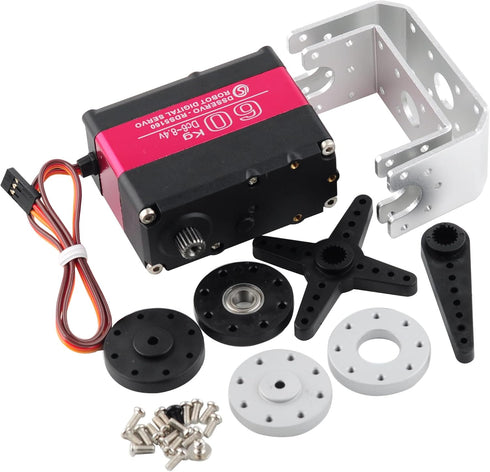

• You will receive 1 PCS 60 kg servo with U-shaped holder disc and accessories

Product Details

• Item Weight: 163 Grams
• Material Type: Metal
• Included Components: Accessories
