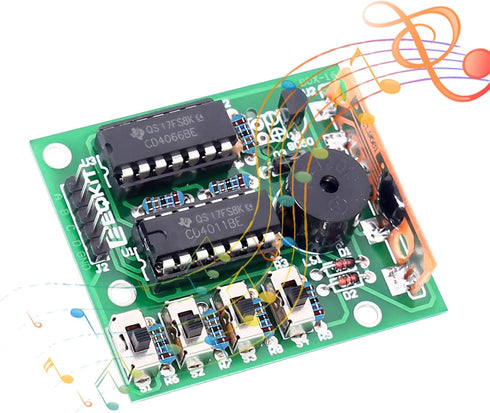

DIY Electronic 16 Music Sound Box Kit, Learning Module for Arduino Practice (Green)

DIY Electronic 16 Music Sound Box DIY Kit Module Practice Learning Kits for Arduino (Green)

DIY Electronic 16 Music Sound Box Kit, Learning Module for Arduino Practice (Green)

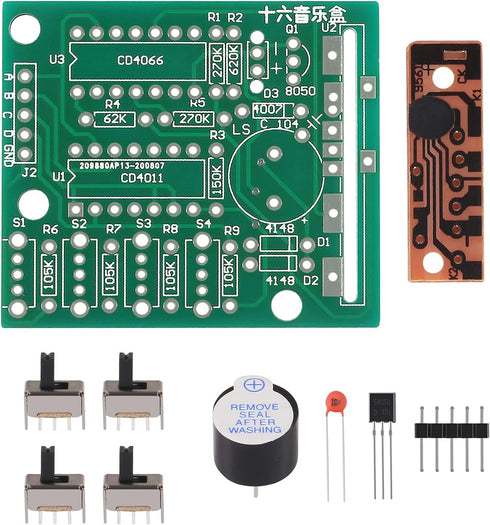

Supply voltage: DC 4.5V-5V Board size: 4.8*4.1cm Control method: manual coding + external coding Whole circuit with a 9561 tones of integrated circuits as the core, with four binary code to encode 9561 working condition control, make its produce 16 different analog sound. The whole circuit including noise generation circuit, basic additional control circuit and control circuit, the binary coding circuit and so much. 1. Sound generating circuit, U2 9561 with transistor Q1 and passive buzzer LS1. 2. Basic control circuits, with two binary digital control U3 of two selected the four kinds of working condition, make its produce four basic acoustics as required. 3. The additional control circuit, using the four states of two binary digital resistor R1, R2, R4, R5 produce a combination of four different to change 9561 external vibration resistance value, which changes the oscillation parameters, the change of the oscillation parameters, is not only changed the oscillation frequency, and derive a lot of new sound. Combine basic control circuit and the additional control circuit, constitute A complete control circuit, is controlled by A B C D four binary encoding, make 9561 produce 16 different sounds. 4. The binary enc Features: The sixteen-tone box can emit 16 interesting analog sound effects at will under your control. It is not only an electronic toy, but also a doorbell or alarm.

Key Features

• ✅ Arbitrarily issued 16 kinds of interesting analog sound. Control Mode: manual coding + external coding.
• ✅ It can be assembled with toys and can produce as many as 16 different sounds, making very interesting toys; Can also be converted into doorbell, alarm clock, alarm, and so on.
• ✅ An electronic product that allows you to assemble yourself. It can open your mind and imagination, and can also train children and students. It is of great value in this respect.

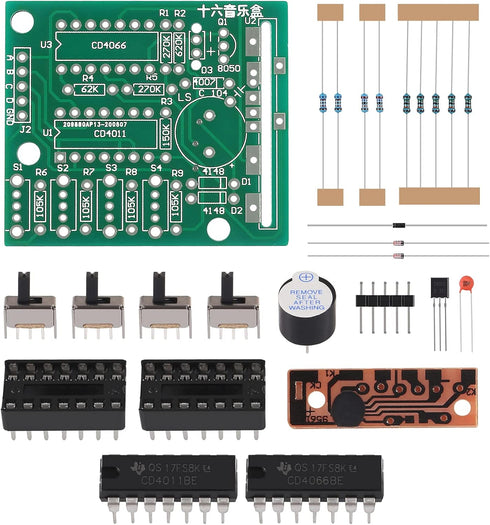

• ✅ 16 Music Box DIY Kits 16 Sound Box BOX-16 16-Tone Box Electronic Module DIY Parts Components Accessory Kits Board
• ✅ Easy Assembly: The operating principle is provided as above picture shown. It's much easier to assemble which is great for kids, beginners and hobbyist.
