5PCS SG90 9g 16 PCA9685 12-Bit Servo Motor + Channel PWM Servo Motor Driver IIC Module DIY Kit for RC Robot Arm

SKU: KGABL2262240

VENDOR: ALAMSCN

$24.66$21.82

You Save: $2.84 (12%)

Hurry! Only 10 Left in Stock!

Free Shipping Across the United States

All orders within the United States qualify for 100% free shipping.

Fast Processing & Dispatch

All orders are shipped within 1 business day after purchase.

30-Day Free Returns

Not satisfied? You can return your order for free within 30 days after delivery.

PRODUCT INFORMATION
PRODUCT INFORMATION

5PCS SG90 9g Servo Motor + 16 Channel PWM Servo Motor Driver PCA9685 IIC Module 12-Bit DIY Kit for RC Robot Arm Helicopter Airplane Car Boat Remote Control for Arduino for Raspberry pi

5PCS SG90 9g 16 PCA9685 12-Bit Servo Motor + Channel PWM Servo Motor Driver IIC Module DIY Kit for RC Robot Arm

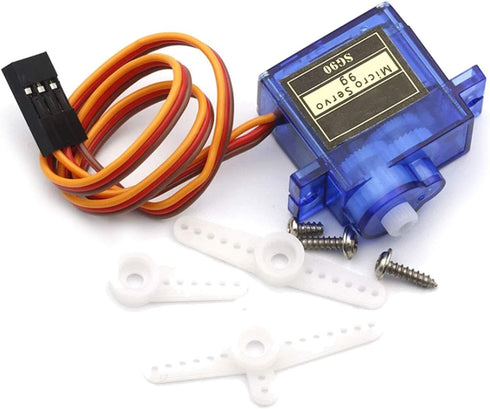

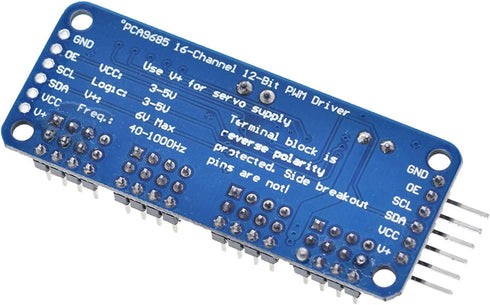

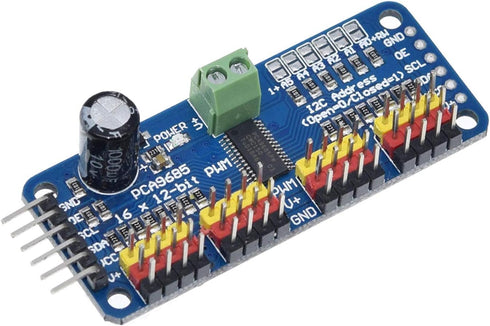

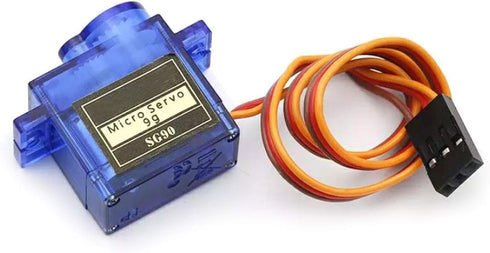

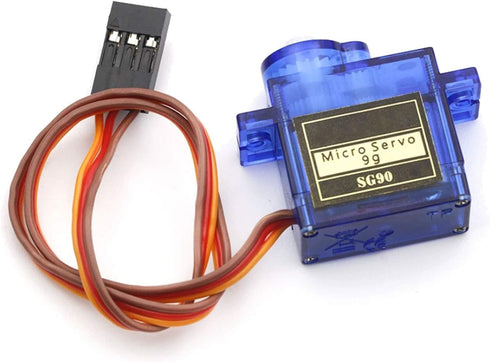

SG90 9g Micro Servo Specification: Red: pressure-wire Brown: Ground lead Orange:signal wire Model: SG90 Weight: 9g Stall torque: 1.8kg/cm Operating speed: 0.1sec/60degree Operating voltage: 4.8V~6V Maximum rotation angle: 180 degrees Temperature range: 0 ~ +55 Dead-set: 7 microseconds Size: 21.5mmX11.8mmX22.7mm PCA9685 16 Channel PWM Servo Motor Driver Features: 1. With the PCA9685 as the master chip, the 16-channel 12-bit PWM Servo Driver only needs 2 pins to control 16 servos, thus greatly reducing the occupant I/Os. 2. PCA9685 16-Channel 12-Bit PWM Servo Driver can help a lot when there are insufficient PWM output pins for the MCU in your project. 3. The only condition is that the main control chip supports I2C communication, which means enabling the communication between the chip and PCA9685, so as to control multiple servos simultaneously. Specification: Frequency: 40-1000Hz. Channel number: 16 channel. Resolution: 12 bit. Voltage: DC 5-10V Size: 60*25mm Note: Due to the small pulling force, it is recommended to be only suitable for ordinary small electric aircraft models, not recommended to used fot motor fixed-wing KT boards or foam machines,larger fixed-wing and electric helicopters

Brand: Visit the ALAMSCN Store

sg90, servo, pwm servo, games, helicopter, bit diy, airplane car, pca9685 iic, iic, controlled vehicles, robot arm, arduino raspberry Toys & Games Remote & App Controlled Vehicles & Parts Remote & App Controlled Vehicle Parts Servos & Parts Servos

Key Features

  • These SG90 9G micro servo motors have a redesigned PCB and control system to provide more accuracy
  • Its internal gearing and motor are also upgraded to improve dead bandwidth and centering.
  • For SG90 9G micro servo motor is far more accurate and safe to use in aircraft which require precise servo movements and perfect centering.
  • Apply to remote control helicopters, micro robot, robot arm and boats. Fit for ALL kind of R/C Toys and also make electronics DIY based on for Arduino ,for Raspberry Pi.

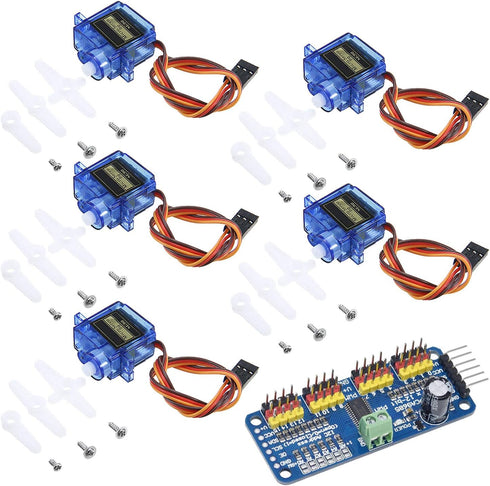

  • Package includes: 5PCS SG90 9g Micro Servo + 1PC PWM Servo Motor Driver

Product Details

  • Product Dimensions: 0.39 x 0.39 x 0.39 inches
  • Item Weight: 0.705 ounces

Shipping & Guarantees

  • FREE standard shipping within the United States (3 6 business days)
  • 100% money-back guarantee for lost or damaged items
  • Secure checkout with encrypted payment processing
  • Shipping via UPS, FedEx, and USPS
  • Ships to lower 48 states only (no PO Boxes / APO / FPO)

Returns

  • 30-day hassle-free returns
  • Items must be unused and in original packaging
  • Full refund if item is not delivered
  • Guaranteed delivery within 6 7 business days
