20KG 7.4V 180 1/8 1/10 x4, RC4WD, FEETECH Servo Motor High Voltage Waterproof High Torque RC Servo Full Metal Gear

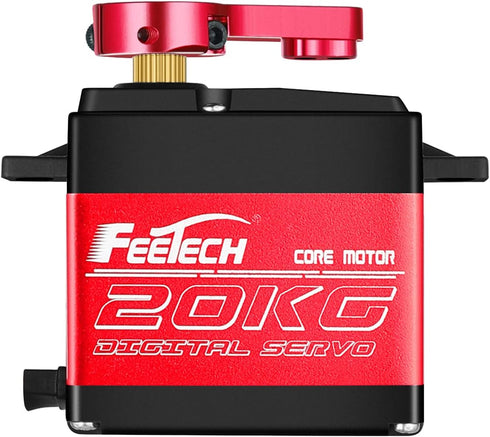

FEETECH 20KG Servo Motor 7.4V High Voltage Waterproof High Torque RC Servo Full Metal Gear Digital Servo, Aluminum Case, Control Angle 180 for 1/8 1/10 RC Cars, TRAXXS x4, Baja, RC4WD, GTR and More

20KG 7.4V 180 1/8 1/10 x4, RC4WD, FEETECH Servo Motor High Voltage Waterproof High Torque RC Servo Full Metal Gear

FT5320M 20kg servo motor small size, lightweight, big torque, high speed and less noise RC servo, widely used in toys, remote control racing cars, airplanes, boats, micro robots, compatible with Arduino, Raspberry Pi The steering gear suitabled for 1/8, 1/10 scale tracked vehicles, tanks, off-road vehicles, remote control robots and boats This digital servo has fast heat dissipation, high sensitivity, long life, and a cost-effective product Operating Temperature Range: -2060 Input Voltage Range: 4V-8.4V Dimensions: 55mm*20mm*43mm Equipped with PA aluminum middle shelll, steel metal gear, iron core 180-degree high-speed operation JR connector, PVC material, length 30cm Weight 671g/ Horn Type 25T/5.9mm Core motor No-load current: 100mA(6V), 120mA(7.4V) No Load Speed: (6V)0.185sec/60(54RPM), (7.4V)0.151sec/60(66RPM) Stall Torque (at locked): (6V)229.54oz/in(16.5kg/cm), (7.4V)278.23oz/in(20kg/cm) Stall Current (at locked): 2.3A(6V), 3A(7.4V)/ Rated Torgue: 5.5kg/cm(6V), 6.5kg/cm(7.4V) Rated Current: 800mA(6V), 1000mA (7.4V)/ Kt constant: 6.5kg.cm/A Command Signal: Pulse width modification Control System Type:Digital compactor/ Operating Travel: 180Continuous rotation(at 5002500sec) Neutral Position: 1500 sec/ Dead Band Width: 4 sec Rotating Direction: Counterclockwise (at 15002000 sec)/ Pulse Width Range: 5002500 sec Electronic Protection: Stall 8sec/ Temperature Protection: >70C Steering or control for small fixed-wing aircraft, helicopters, drones, RC cars, and boats. Micro-robot joints, robotic arms, smart line-following car steering, humanoid robots. Small smart home devices, creative electronic gadgets, automated toys. Since 2011, FEETECH has focused on the research and development and production of remote control servos and robotic servos, and is a smart manufacturing enterprise integrating production and sales. With rich R&D experience and outstanding innovation capabilities, we continuously develop and produce new servos to meet market demands. Our goal is to become your trusted servo manufacturer and enhance your remote control model experience.

Brand: FEETECH

torque, more, servo, cars, 180 cars, games, 20kg servo, feetech, 180, metal gear, servo aluminum, baja rc4wd Toys & Games Remote & App Controlled Vehicles & Parts Remote & App Controlled Vehicle Parts Servos & Parts Servos

Key Features

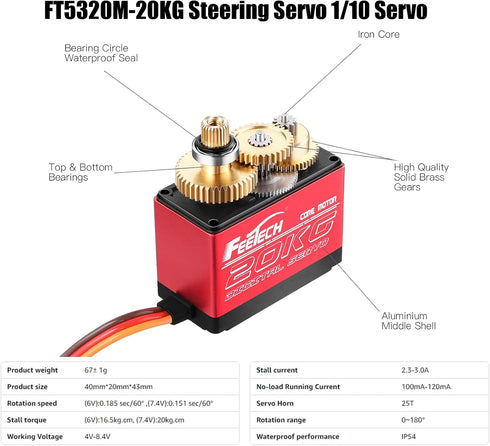

• HIGH QUALITY SERVO: FT5320M servo motor is composed of a sturdy PA aluminum middle shell, a strong copper metal gear, and a hard iron shaft, provide higher stability and provide longer service life.

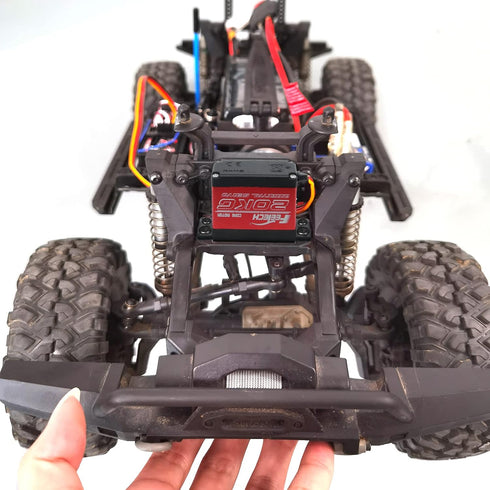

• GREAT COMPATIBLE MOTOR: The servo motor system is controlled by pulse, compatible with 1/8 and 1/10 scale RC robots, trucks, off-road vehicles, robotic arms, and any application that uses a standard servo system.
• SERVO PROTECTION MECHANISM: The steering gear has IP54 waterproof performance and ball bearings.The output torque exceeds the overload torque, lasts 8S, or the temperature over 70 , the steering gear will automatically stop the output torque. The overload torque can be modified.

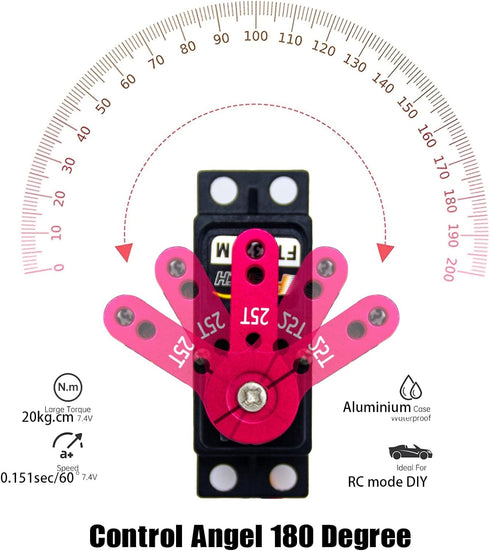

• HIGH ROTATION SPEED SERVO: A high-torque servo, the rotation angle is 180 degrees (at 5002500sec), when the power is stopped, it can rotate 360 degrees. Dead width 4 sec. Durable and reliable.

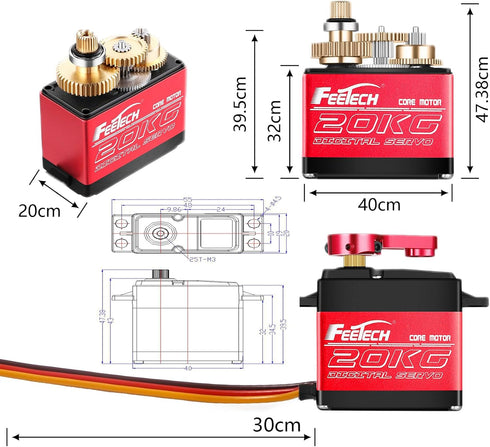

• STRONG STALL TORGUE MOTOR: The operating voltage range is 4V-8.4V, the stall torgue is (6V) 229.54oz/in(16.5kg/cm), (7.4V) 278.23oz/in(20kg/cm), the servo size is 55X20X43mm.

Product Details

• Model Number: FT5320M
• Power Source: Rechargeable Battery
• Material Type: Aluminum
