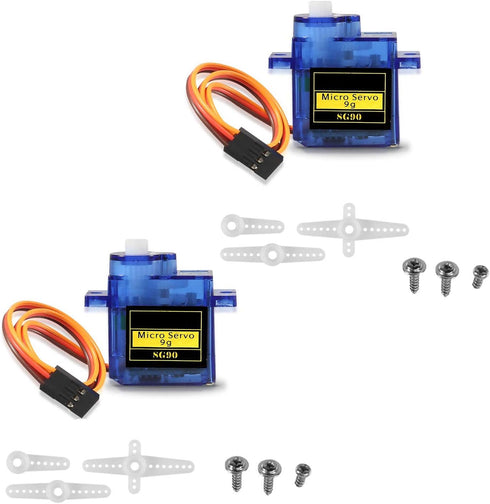

2 Pack SG90 SG90 9g Micro Servo Motor Mini Servo Servo Kit for RC Helicopter Airplane Car Boat Robot

2 Pack SG90 Micro Servo Motor Mini Servo SG90 9g Servo Kit for RC Helicopter Airplane Car Boat Robot Arm/Hand/Walking/Servo Door Lock Control with Cable

2 Pack SG90 SG90 9g Micro Servo Motor Mini Servo Servo Kit for RC Helicopter Airplane Car Boat Robot

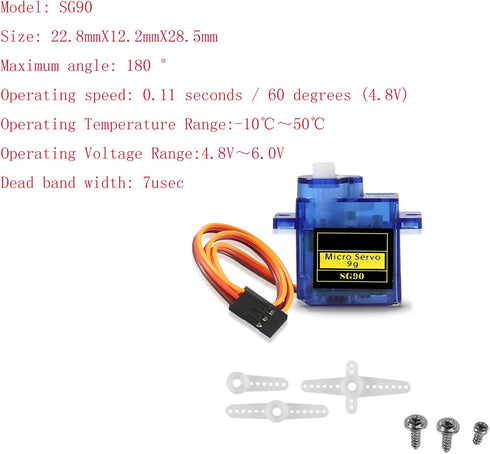

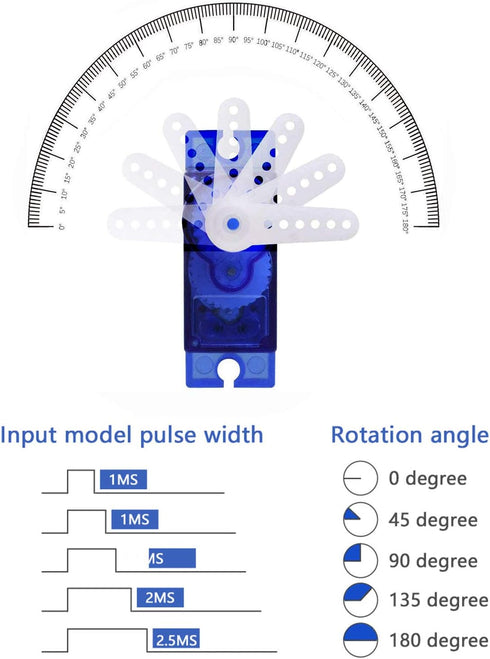

SG90 9G micro servo motor for remote control helicopters, micro robot, robot arm and boats. Fit for ALL kinds of RC Toys and also make electronics DIY compatible with Arduino, Raspberry Pi. Yellow line (signal line) Red line (power line) Brown (ground) Red wire-5V Brown Wire-Ground Yellow wire-digital pin 9. Maximum angle: 180 Torsional moment: 2kg/cm Working voltage: 4.8V Temperature range :0 --55 Operating speed: 0.11 seconds / 60 degrees (4.8V) The deadband setting: 5 microseconds Line Length:300MM Operating Temperature Range:-1050 Operating Voltage Range:4.8V6.0V Control system:Change the pulse width Amplifier type:Analog controller Operating trave:l12010 (9002100 sec) Left&Right travelling Angle deviation: 6 Centering deviation: 1 Neutral position:1500 sec Dead band width:7 sec Rotating direction:Counter Clockwise (9002100sec) Pulse width range:9002100 sec Maximum travel:About 120 (9002100 sec) SG90 9G micro servo motor very wide application,use for RC Robot Arm Helicopter Airplane Car Boat Remote Controls and compatible with Arduino Experiments.

Brand: Visit the SIPYTOPF Store

micro, sg90, servo, arm hand, games, helicopter, kit helicopter, airplane car, controlled vehicles, robot arm, sg90 servo, servo door Toys & Games Remote & App Controlled Vehicles & Parts Remote & App Controlled Vehicle Parts Servos & Parts Servos

Key Features

• SG90 9G micro servo motor for remote control helicopters, micro robot, robot arm and boats. Fit for ALL kinds of RC Toys and also make electronics DIY compatible with Arduino, Raspberry Pi
• Stall Torque (4.8V): 17.5oz /in (1kg/cm); Operating voltage: 3.0V~ 6V; Temperature range: -30 to +60; Dead band width: 7usec.
• Interface Type: Compatible with JR & FUTABA interface. Running Speed (at no load): 0.09 0.01 sec/60(4.8V ) 0.08 0.01 sec/60(6V). Maximum angle: 120

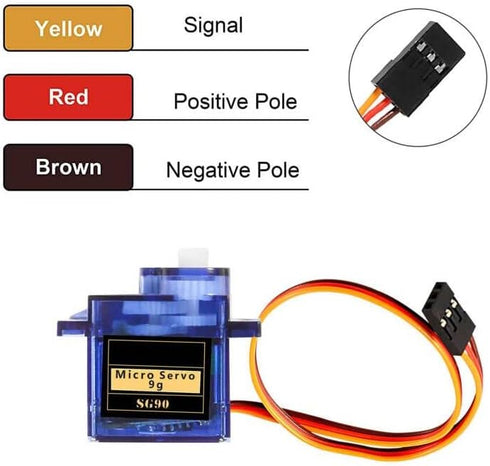

• The SG90 has 3 wire interfaces in which the connections should be made as follows: Red wire-5V, Brown Wire-Ground, Yellow wire-digital pin 9.
• Support for Arduino,Futaba, JR, Sanwa and Hitec remote system.

Product Details

• Package Dimensions: 3.78 x 2.52 x 0.75 inches
• Item Weight: 1.13 ounces
