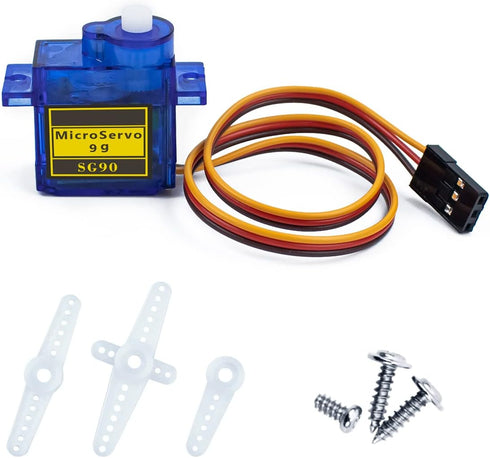

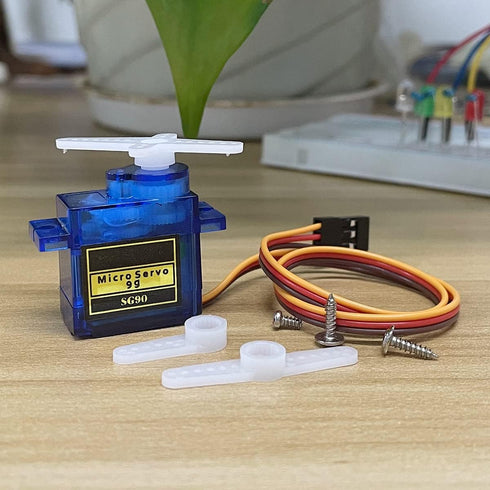

10 Pack SG90 9G Hosyond Servo Motors Micro Servo for RC Robot Helicopter Airplane Boat Remote Control Toys, Servo

Hosyond 10 Pack Servo Motors SG90 9G Micro Servo for RC Robot Helicopter Airplane Boat Remote Control Toys, Servo for Arduino Project, Blue

10 Pack SG90 9G Hosyond Servo Motors Micro Servo for RC Robot Helicopter Airplane Boat Remote Control Toys, Servo

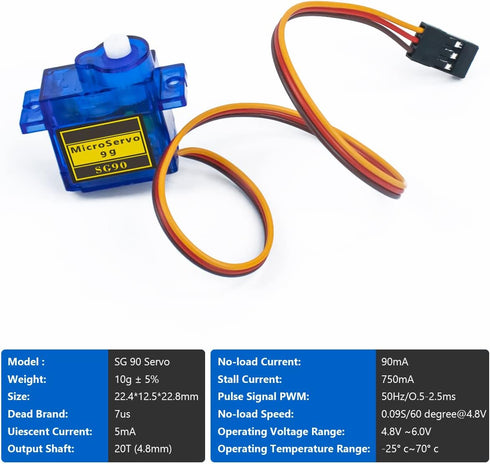

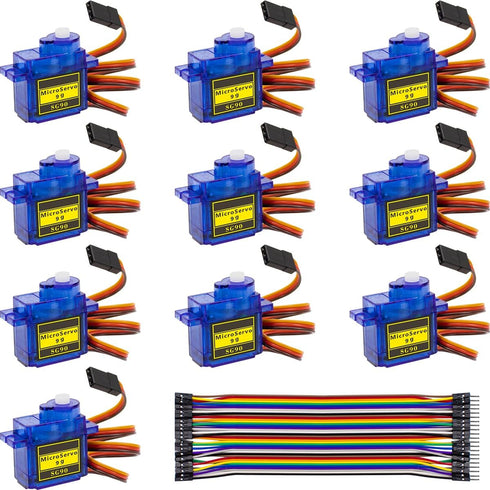

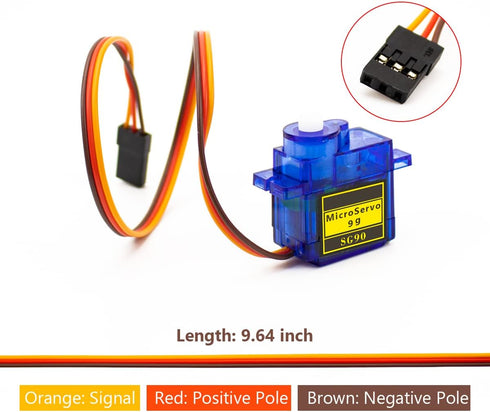

Mechanical Specification: Limit angle: 200 1 Weight: 9 1 g Connector wire gauge: 28 PVC Connector wire length: 250 5 mm Spline: 21T Horn type: Cross,star and bar-type Excessive play: 0.5 Control Specification: Control system: Change the pulse width Amplifier type: Analog controller Operating trave: l12010 (9002100 sec) Left&Right travelling Angle deviation: 6 Centering deviation: 1 Neutral position: 1500 sec Dead band width: 7 sec Rotating direction: Counter Clockwise (9002100sec) Pulse width range: 9002100 sec Maximum travel: About 120 (9002100 sec) Wire Layout: Electrical Specification (Function of the Performance): Operating speed (at no load): 0.090.01 sec/60(4.8V ) 0.080.01 sec/60(6V) Running current (at no load): 40030mA (4.8V ) 50030mA(6V) Stall torque (at locked): 2.00.20kgcm (4.8V ) 2.20.20kgcm(6V) Stall current (at locked): 130040mA (4.8V ) 160050mA(6v) Idle current (at stopped): 61mA (4.8V ) 61mA(6v) Running life(at no load): >350000 Turns(4.8V ) >320000 Turns(4.8V ) Package include: 10 x SG90 9G servo motor 1 x 20cm female-male jumper wire

Brand: Visit the Hosyond Store

micro, project, sg90, servo, games, control toys, helicopter, controlled vehicles, hosyond, arduino project, toys games, airplane boat Toys & Games Remote & App Controlled Vehicles & Parts Remote & App Controlled Vehicle Parts Servos & Parts Servos

Key Features

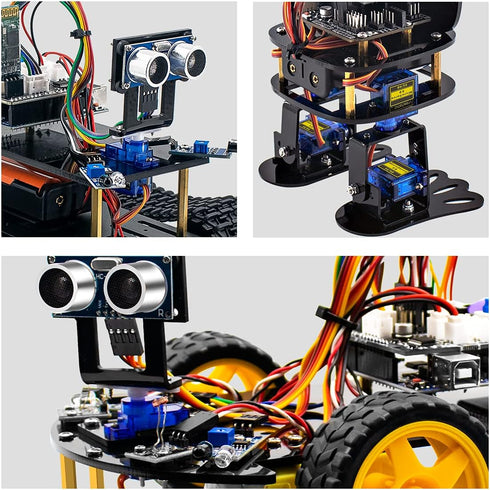

• [Applications] SG90 9G servo motor, compatible with RC helicopters, micro robots, robot arm and ships etc. Support various remote control toys and Arduino project
• [Interface type] This SG90 servo is compatible with JR & Futaba interface

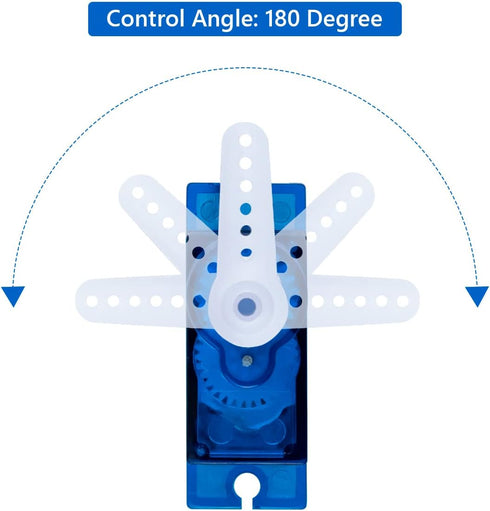

• [Operating speed] 0.12 second/ 60degree ( 4.8V no load), 0.1 second / 60degree ( 6.0V no load), Max rotation angle:180 degrees
• [Stalling torque] 17.5oz/in (1kg/cm); Dead zone width: 7 microseconds; Amplifier type: analog controller; Working voltage: 4.8V6.0V
• [Reminder] The starting current of the analog servo motor must be greater than 1A. SG90 Servo is an analog servo and needs to continuously provide PMW signal to work normally

Product Details

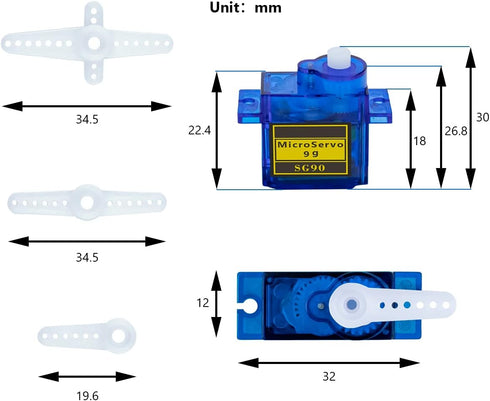

• Product Dimensions: 0.9 x 0.5 x 1.3 inches
• Item Weight: 5.9 ounces
